Niagara Ogee 110mm Guttering Parts

Choose your required component and colour from the available options.

Complete or repair your rainwater drainage system with genuine Niagara 110mm Ogee gutter fittings. Designed for high-capacity water collection, the Niagara system combines an attractive traditional scalloped profile with a smooth, easy-to-clean finish.

Suitable for new builds, period properties, conservatories and small commercial buildings, these durable PVC-U fittings clip together quickly for a secure and reliable installation.

Key Features

• Genuine Niagara guttering components
• High-capacity 110mm wide × 80mm deep Ogee profile
• Traditional decorative scalloped appearance
• Up to twice the capacity of standard half-round guttering
• Pre-fitted seals and clips on applicable fittings
• Fast and straightforward clip-fit installation
• Concealed top-hung fascia bracket option
• Compatible with 65mm square, 68mm round or 80mm round downpipes
• Durable, weather-resistant and low-maintenance PVC-U
• Suitable for domestic and light commercial applications
• Available in White, Black, Brown and Anthracite Grey
• FloPlast 10-year performance and colour guarantee

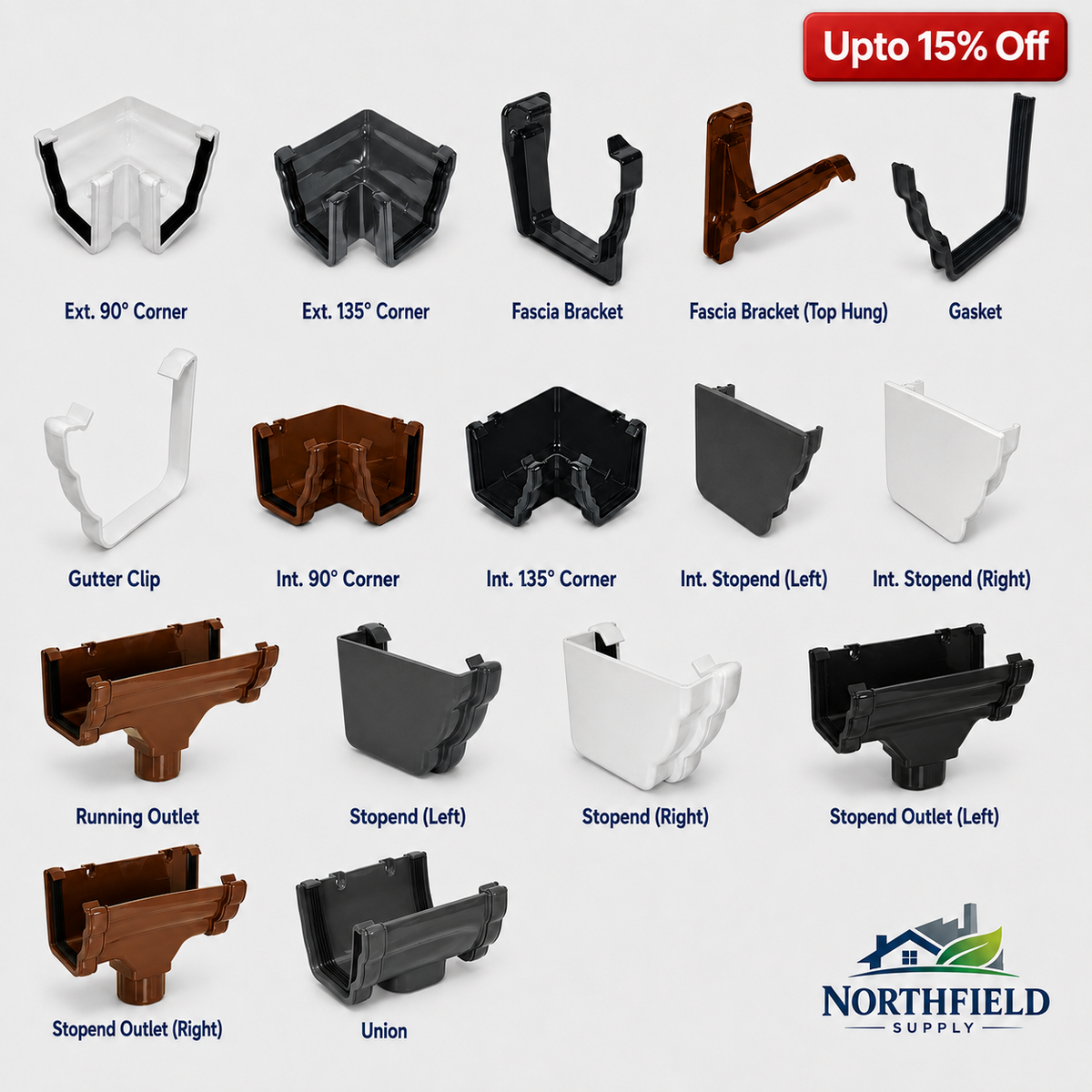

Available Components

Gutter Union

Connects two straight Niagara gutter lengths to create a continuous watertight run.

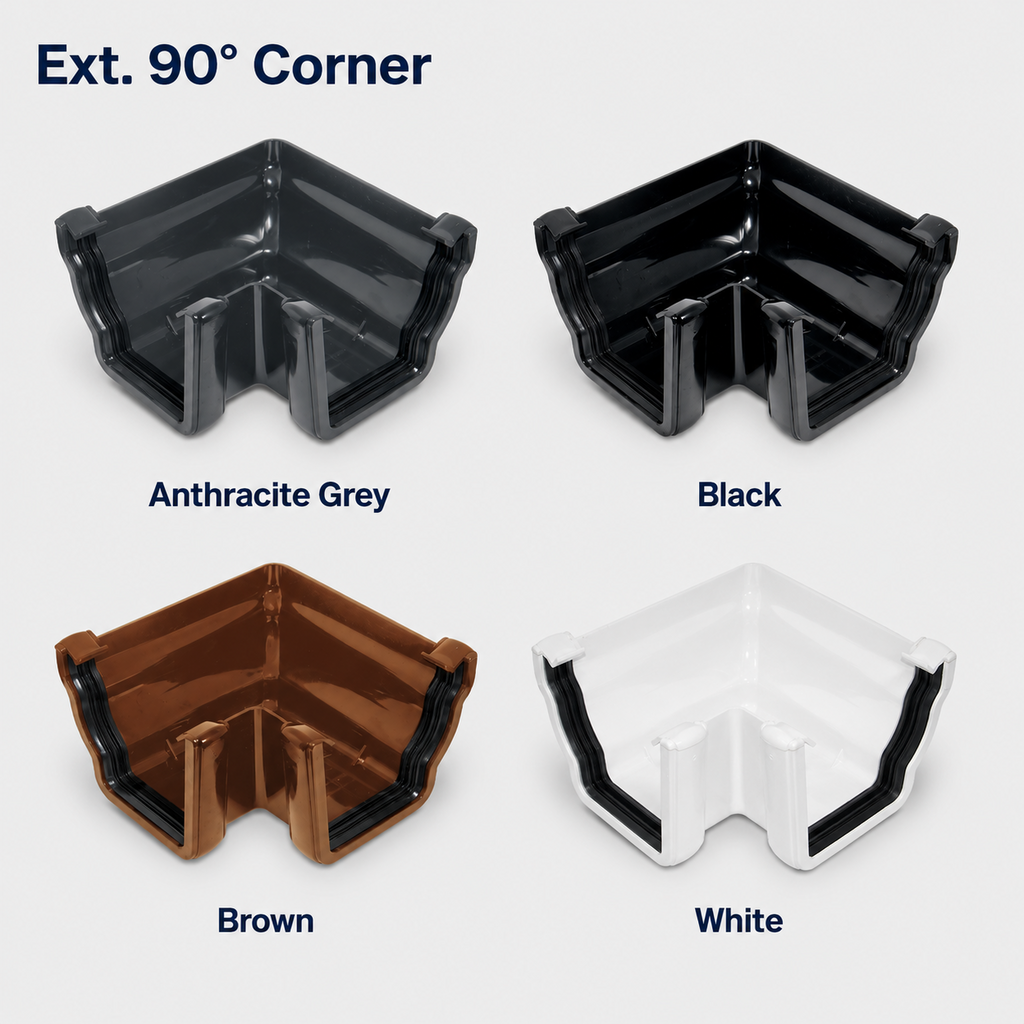

External 90° Corner

Creates an outward-facing right-angle connection around external building corners.

External 135° Corner

Suitable for angled external corners, Victorian-style conservatories and three-sided bay windows.

Internal 90° Corner

Creates a right-angle joint around inward-facing roof or building corners.

Internal 135° Corner

Designed for internal angled returns on bay windows, conservatories and rooflines.

Running Outlet

Fits between two gutter lengths and directs rainwater into a compatible downpipe.

Stopend

Clips onto the open end of the gutter to close and seal the system. Select left- or right-hand orientation when viewed from outside the building.

Internal Stopend

Fits inside the socket of compatible unions, corners and outlets to close the gutter run.

Stopend Outlet

Closes the end of the gutter while providing an outlet for the downpipe. Select left- or right-hand orientation when viewed from outside.

Fascia Bracket

Fixes directly to the fascia board and supports the gutter securely from underneath.

Top-Hung Fascia Bracket

Supports the gutter from above, providing a cleaner appearance with the bracket concealed from below.

Gutter Clip

Replacement clip for securing gutter fittings and maintaining a strong connection.

Gutter Gasket

Replacement rubber seal for worn or damaged gaskets in Niagara gutter joints and fittings.

Technical Specifications

Individual component dimensions vary. Please refer to the listing images and selected variation before ordering.

Flow Capacity

The FloPlast Niagara system provides considerably greater drainage capacity than standard half-round guttering.

A centrally positioned outlet can significantly increase drainage capacity compared with an end outlet. Roof size figures are approximate and depend on rainfall intensity and installation conditions.

Installation Guidance

1. Plan the gutter route and position the outlet directly above the drain.
2. Install the outlet no more than 50mm below the roof-tile level.
3. Set a recommended fall of approximately 1:350 towards the outlet.
4. Fix fascia brackets at maximum intervals of 800mm.
5. Reduce bracket spacing to approximately 400mm in areas exposed to heavy snowfall.
6. Position brackets within 150mm of unions, corners, outlets and stopends.
7. Secure brackets using suitable 25mm × 5mm round-head corrosion-resistant screws.
8. Insert gutter lengths into fittings up to the marked expansion lines.
9. Hook the rear edge of the gutter under the back clip, then press the front edge firmly into place.
10. Apply a suitable silicone lubricant to seals where required to make assembly easier.

Allow adequate space for thermal expansion and always follow the manufacturer’s fitting instructions.

Please Note

• This is a variation listing; the exact quantity and component supplied depend on the option selected.
• Colours may appear slightly different due to lighting and screen settings.
• Check the component type, colour and orientation carefully before ordering.
• Brown is designed to coordinate with many rosewood and mahogany-effect roofline products.
• Please contact us through eBay messages if you need help choosing compatible components.
